PdfClick here to download a PDF document of the Assinck Idlers Catalogue with more detailed information.

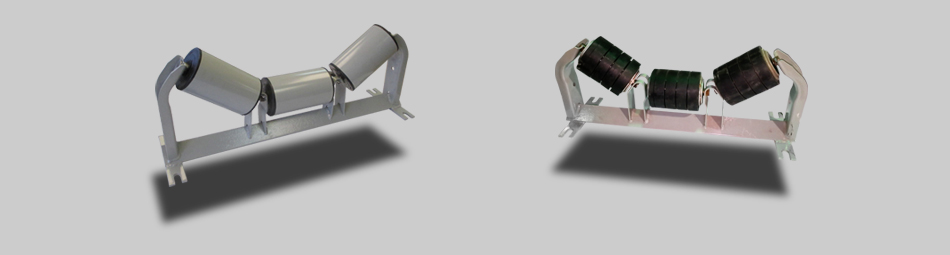

Assinck makes 4″, 5″ and 6″ diameter troughing idlers and return rollers, all made from heavy No.10 gauge seamless tube. The ends are formed to provide a pressed fit on the Sealed-for-Life ball bearing. The bearing is pressed onto a specially machined shaft and held in place by a retainer ring. The bearing is further protected by a double lip neoprene seal that is pressed into the formed end disc to prevent sand and water particles from entering the bearing area.

  • New improved dust flanges also installed to protect and seal
  • The shaft is prevented from rotating in the mounting bracket by a double slot
  • The extra heavy frames on all sizes, has die formed channel type end brackets supported on a heavy duty angle base
  • The return rollers have the same features as the carrier rollers
  • End rolls are tilted 20 degrees or 35 degrees to provide the carrying capacity you need for your particular material handling job
  • Assinck troughing idlers and return rollers meet CEMA Class C for medium duty applications
  • Assinck rollers and frames are also sold separately

Longer Life:

  • The machined shafts prevent end movement of rollers
  • The larger shafts take heavier loads
  • The double lip neoprene seals prevent moisture and dirt from entering the bearings
  • The retainer ring prevents bearings from moving after assembly

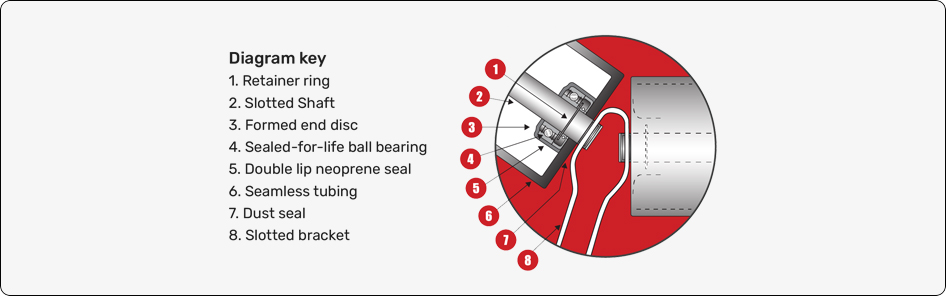

Idler Diagram
